Food preservation. Ice makers.
In large-scale retail, fishmongers, catering, and the fishing and food industry in general, continuous ice production is essential, both to preserve and present the product in display counters, and for storage or transport.
This line, includes ice makers in all required versions:
- granular ice, also with higher humidity and mouldable
- ice flakes
- ice cubes
All models meet the requirements of small or large-scale business, are simple to install and easy to use.
The range is completed with a series of large or high capacity insulated ice containers.
Full cubes Ice makers

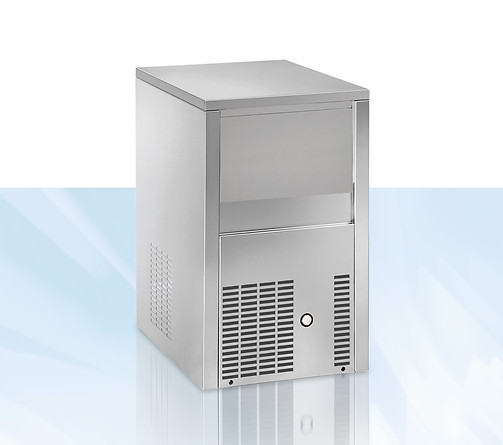

CIM 20/5
20 Kg/24 h - 1176 cubes
CIM 30/10
30 Kg/24 h - 1764 cubes
CIM 45/15
45 Kg/24 h - 2647 cubes
RELIABLE
-
Construction in stainless steel and specific materials approved for contact with food stuff
-
Self contained ice collecting bin
-
A (Air) or W (Water) condensing
-
Electronic controls
-
Special voltages, on request
-
Machines comply with hygiene and safety regulations
-
Standard working conditions:
-
incoming water temperature 15°C
-
environment air temperature 20°C
-
-
Higly recommended the installation of salt dosing unit to prevent scale built-up of limestone
ICE-TEK. Granular ice makers
0°C large sized ice, providing the ideal humidity degree (between 15% and 20%). Bright compact pure grains. Excellent for:
-
food product storing and presenting (fishmongers counter, supermarkets and catering)
​
The evaporator, heart of the machine, is made of a cylinder, cooled down to very low temperature thanks to the gas (R404a) expansion. The water freezes on its surface and gets extruded through a draw-plate into grains.

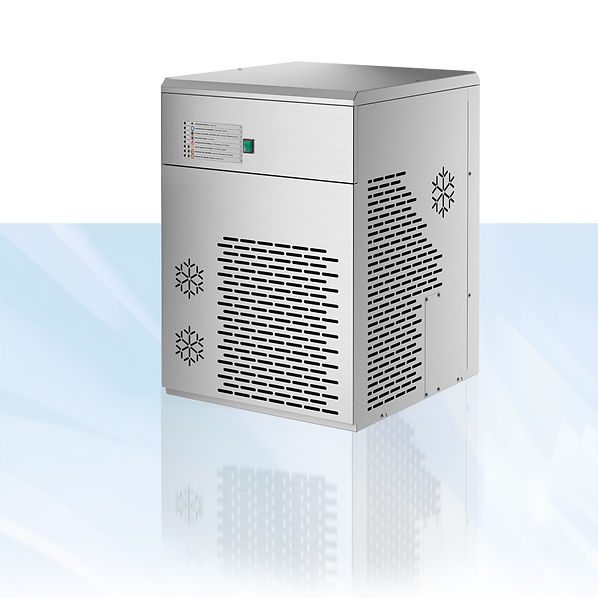

GIM 400
Granular ice makers - 400 Kg/24 h
RELIABLE
-
Construction in stainless steel and specific materials approved for contact with food stuff
-
Gas R404a
-
(A) Air condensing**
-
Compact and Split* versions
-
Special voltages, on request
-
“ON-OFF” controls on board the machine
-
Machines comply with hygiene and safety regulations
-
Standard working conditions:
-
incoming water temperature 15°C
-
environment air temperature 20°C
-
-
Built-in “overflow” sensor
* KVP valve not included (optional)
** Water (W) condesing to be confirmed
Flake/scale ice makers

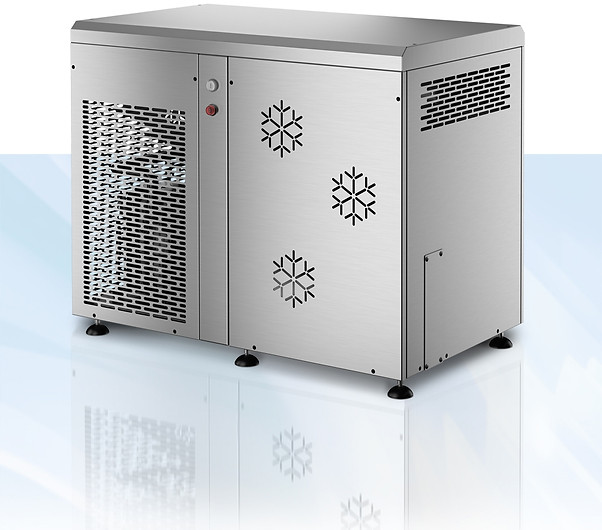

FIM 250 - FIM 400
Flake/scale ice makers
FIM 250
250 Kg/24 h
FIM 400
400 Kg/24
RELIABLE
-
Construction in stainless steel and specific materials approved for contact with food stuff***
-
Gas R404a
-
(A) Air condensing
-
Special voltages, on request
-
“ON-OFF” controls on board the machine
-
Machines comply with hygiene and safety regulations
-
Standard working conditions:
-
incoming water temperature 15°C
-
environment air temperature 20°C
-
-
Fixed vertical evaporator cylinder with high thermal exchange
*** Naked version to be confirmed
